NEW OEM Holset H2D Turbo Various Truck Cummins L10 LTA10 3803570 3531773 3531772

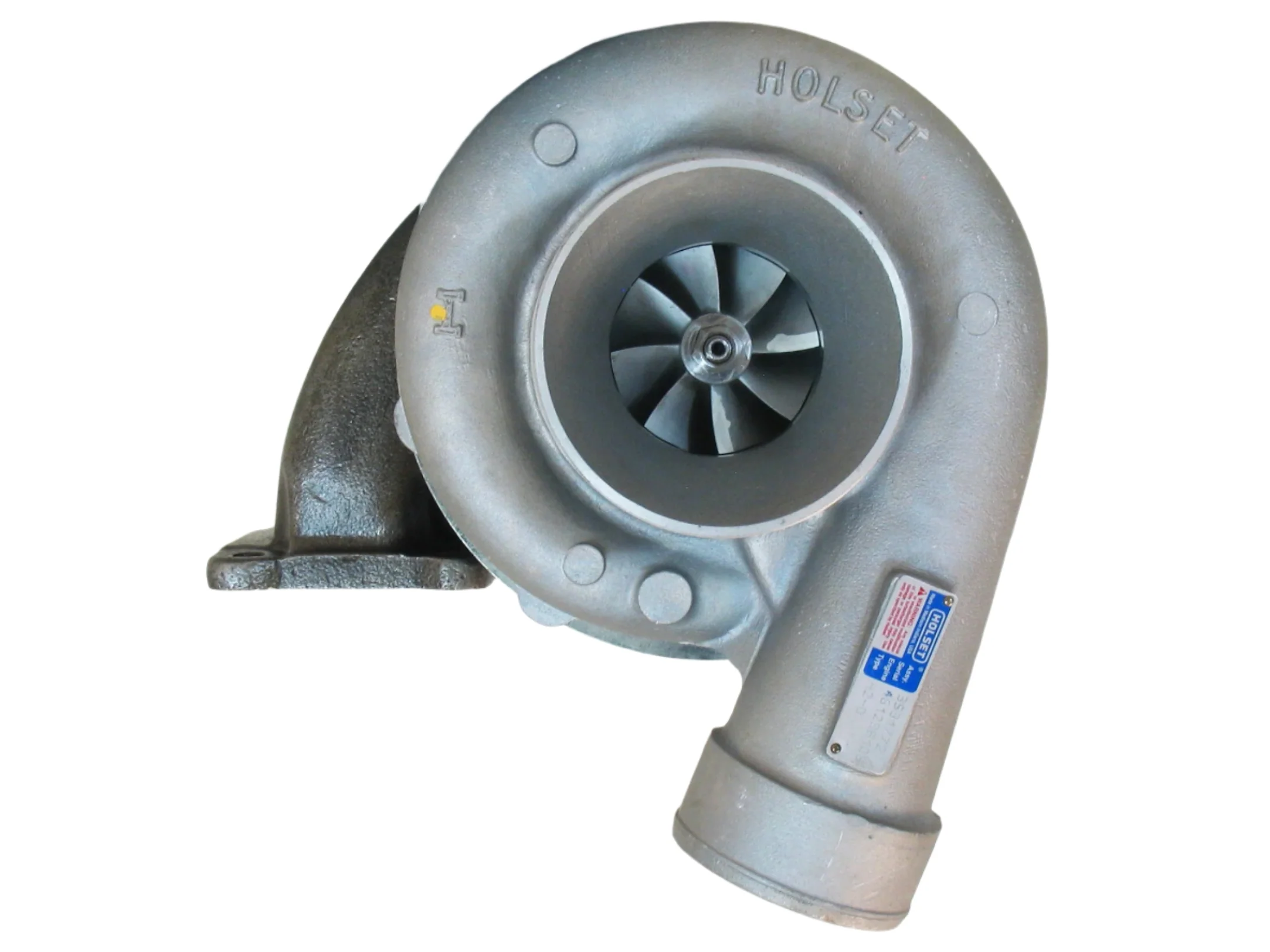

BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3531772
Interchangeable Number: 3525743, 3525744, 353177300, 3531773H, 3803018, 3803018RX, 3803570NX, 3803570RX
OEM Number: 1295688H91, 3525743, 3531773, 3803570
Serial Number: 1861613
Turbo Model: H2D, H2D-9341/TA19Q11, H2D-9341/X19Q11
Manufacturer: Holset
Year: 1988-
Engine: L10, LTA10
Engine Manufacturer: Cummins
Fuel: Diesel
Power: 270 HP
Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3762564 (62564, 167543)(1253300300, 1800016038)
Bearing Housing: 3525199 (403040002)(Oil Cooled)(1900011204)
CHRA: 3545691 (4027579, 312284, 441398-0048)

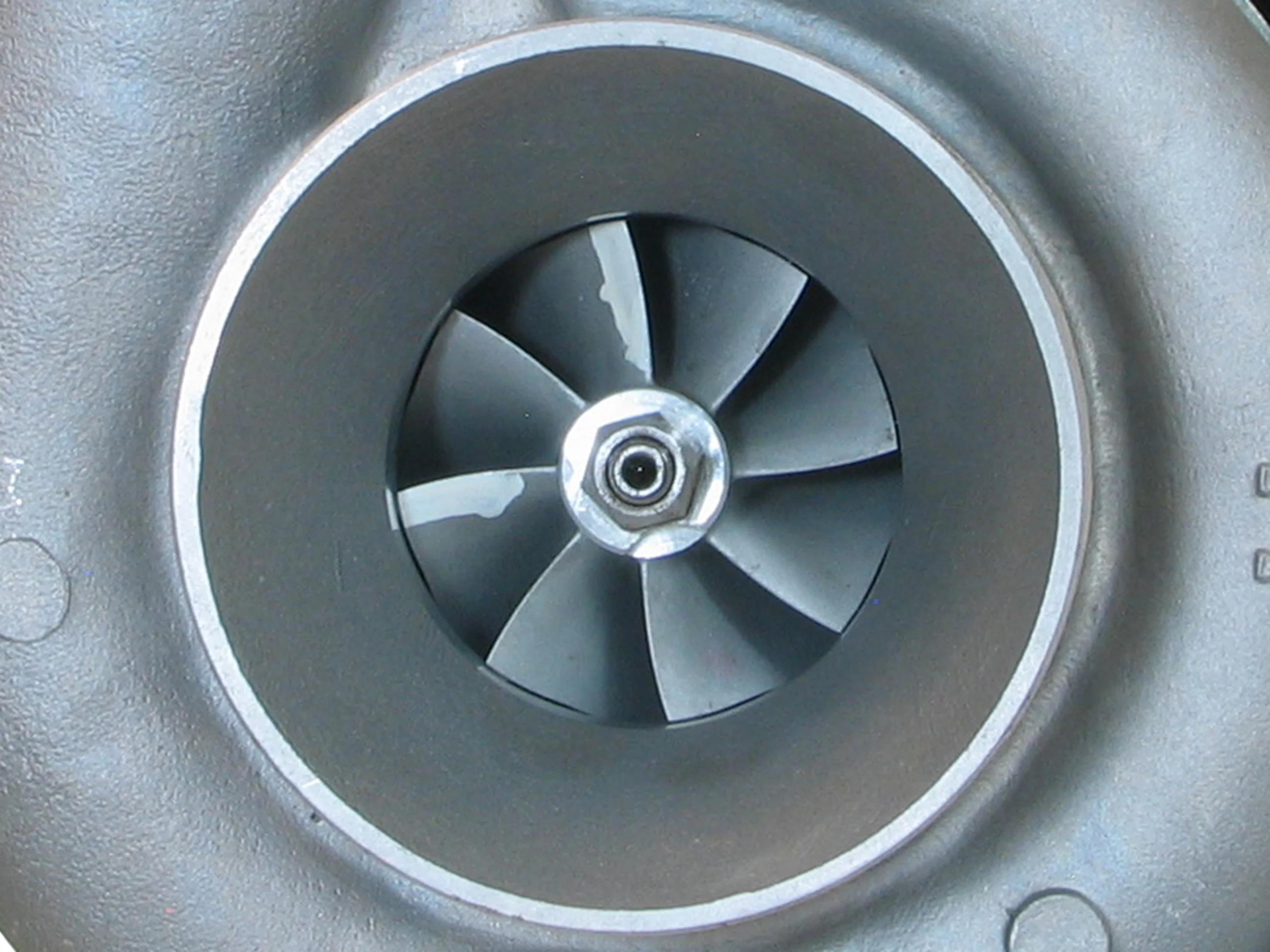

Compressor Wheel: 3524996 (Ind. 61.46 mm, Exd. 91.67 mm, Trim 43, 6+6 Blades, Super Back)(402040002)
Gasket (Oil Inlet): 210023 (147837, 215234, 52231586500)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket Kit: 215149 (2090505116)
Heat Shield: 3529846 (3533038, 406500001)(2030016003)
Repair Kit: 3545653 (1152302750, 5000020017)

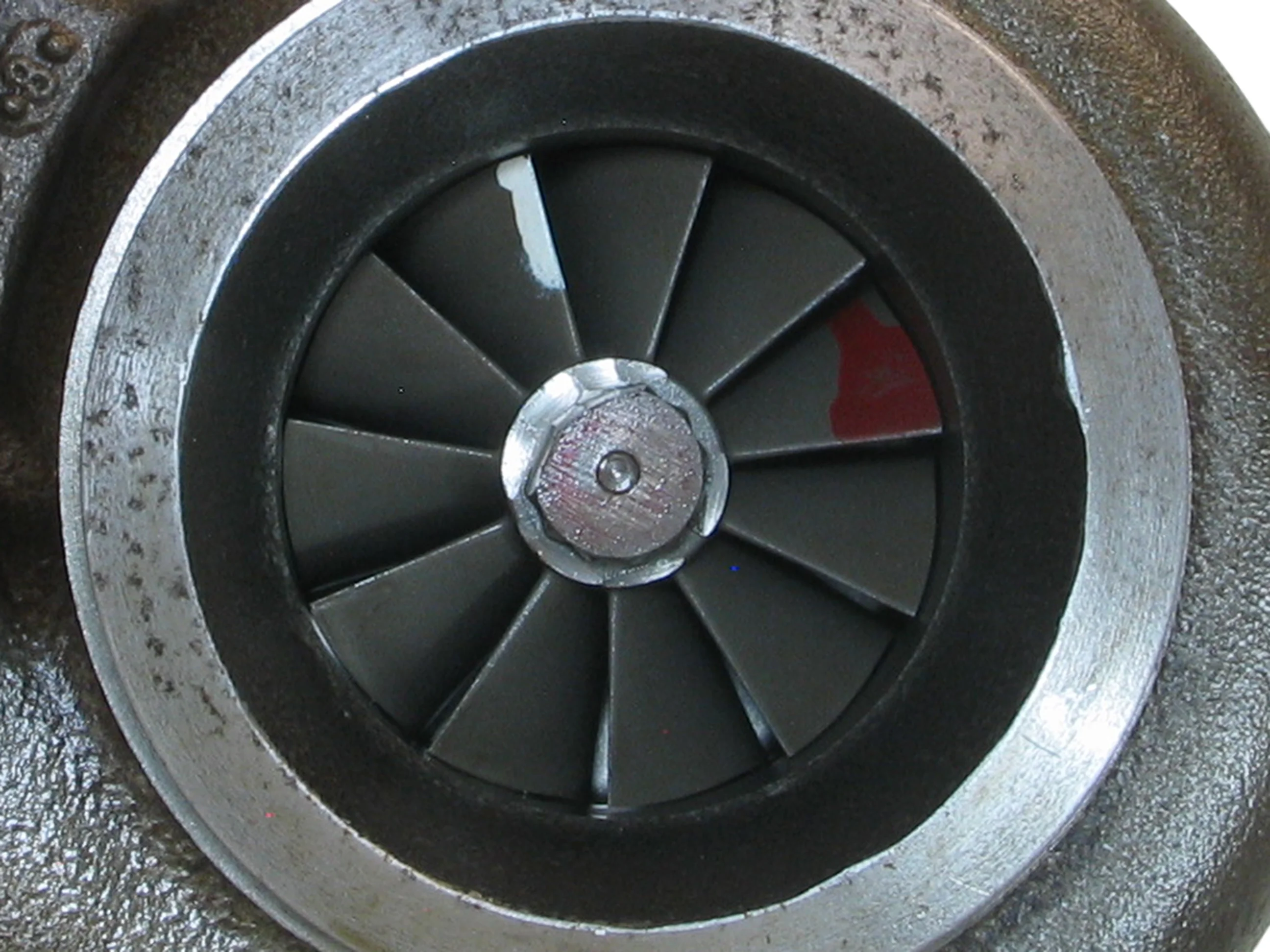

Turbine Wheel: 3522773 (Ind. 86 mm, Exd. 77 mm, Trim 12.97, 11 Blades)(1152302436, 1100016087)
Application:
1988-93 Truck with Cummins L10 Engine
1992- Various with Cummins LTA10 Engine

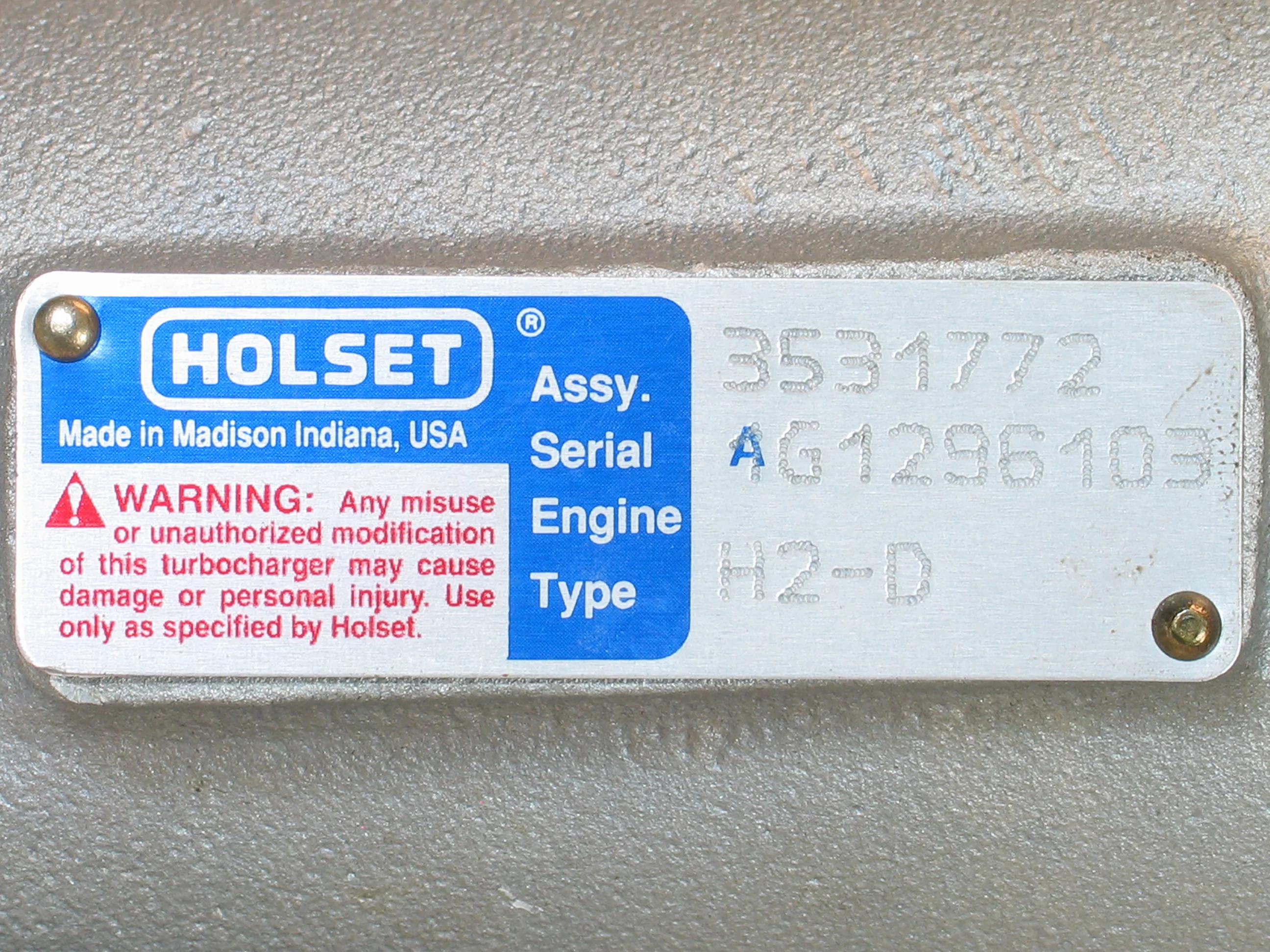

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3531772
Interchangeable Number: 3525743, 3525744, 353177300, 3531773H, 3803018, 3803018RX, 3803570NX, 3803570RX
OEM Number: 1295688H91, 3525743, 3531773, 3803570
Serial Number: 1861613
Turbo Model: H2D, H2D-9341/TA19Q11, H2D-9341/X19Q11
Manufacturer: Holset
Year: 1988-
Engine: L10, LTA10
Engine Manufacturer: Cummins
Fuel: Diesel
Power: 270 HP
Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3762564 (62564, 167543)(1253300300, 1800016038)
Bearing Housing: 3525199 (403040002)(Oil Cooled)(1900011204)
CHRA: 3545691 (4027579, 312284, 441398-0048)
Compressor Wheel: 3524996 (Ind. 61.46 mm, Exd. 91.67 mm, Trim 43, 6+6 Blades, Super Back)(402040002)
Gasket (Oil Inlet): 210023 (147837, 215234, 52231586500)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket Kit: 215149 (2090505116)
Heat Shield: 3529846 (3533038, 406500001)(2030016003)
Repair Kit: 3545653 (1152302750, 5000020017)
Turbine Wheel: 3522773 (Ind. 86 mm, Exd. 77 mm, Trim 12.97, 11 Blades)(1152302436, 1100016087)
Application:
1988-93 Truck with Cummins L10 Engine
1992- Various with Cummins LTA10 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3531772
Interchangeable Number: 3525743, 3525744, 353177300, 3531773H, 3803018, 3803018RX, 3803570NX, 3803570RX
OEM Number: 1295688H91, 3525743, 3531773, 3803570
Serial Number: 1861613
Turbo Model: H2D, H2D-9341/TA19Q11, H2D-9341/X19Q11
Manufacturer: Holset
Year: 1988-
Engine: L10, LTA10
Engine Manufacturer: Cummins
Fuel: Diesel
Power: 270 HP
Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3762564 (62564, 167543)(1253300300, 1800016038)
Bearing Housing: 3525199 (403040002)(Oil Cooled)(1900011204)
CHRA: 3545691 (4027579, 312284, 441398-0048)
Compressor Wheel: 3524996 (Ind. 61.46 mm, Exd. 91.67 mm, Trim 43, 6+6 Blades, Super Back)(402040002)
Gasket (Oil Inlet): 210023 (147837, 215234, 52231586500)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket Kit: 215149 (2090505116)
Heat Shield: 3529846 (3533038, 406500001)(2030016003)
Repair Kit: 3545653 (1152302750, 5000020017)
Turbine Wheel: 3522773 (Ind. 86 mm, Exd. 77 mm, Trim 12.97, 11 Blades)(1152302436, 1100016087)
Application:
1988-93 Truck with Cummins L10 Engine
1992- Various with Cummins LTA10 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3531772
Interchangeable Number: 3525743, 3525744, 353177300, 3531773H, 3803018, 3803018RX, 3803570NX, 3803570RX
OEM Number: 1295688H91, 3525743, 3531773, 3803570
Serial Number: 1861613
Turbo Model: H2D, H2D-9341/TA19Q11, H2D-9341/X19Q11
Manufacturer: Holset
Year: 1988-
Engine: L10, LTA10
Engine Manufacturer: Cummins
Fuel: Diesel
Power: 270 HP
Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3762564 (62564, 167543)(1253300300, 1800016038)
Bearing Housing: 3525199 (403040002)(Oil Cooled)(1900011204)
CHRA: 3545691 (4027579, 312284, 441398-0048)
Compressor Wheel: 3524996 (Ind. 61.46 mm, Exd. 91.67 mm, Trim 43, 6+6 Blades, Super Back)(402040002)
Gasket (Oil Inlet): 210023 (147837, 215234, 52231586500)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket Kit: 215149 (2090505116)
Heat Shield: 3529846 (3533038, 406500001)(2030016003)
Repair Kit: 3545653 (1152302750, 5000020017)
Turbine Wheel: 3522773 (Ind. 86 mm, Exd. 77 mm, Trim 12.97, 11 Blades)(1152302436, 1100016087)
Application:
1988-93 Truck with Cummins L10 Engine
1992- Various with Cummins LTA10 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
$663.25
Original: $1,895.00
-65%NEW OEM Holset H2D Turbo Various Truck Cummins L10 LTA10 3803570 3531773 3531772—
$1,895.00
$663.25Description
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3531772
Interchangeable Number: 3525743, 3525744, 353177300, 3531773H, 3803018, 3803018RX, 3803570NX, 3803570RX
OEM Number: 1295688H91, 3525743, 3531773, 3803570
Serial Number: 1861613
Turbo Model: H2D, H2D-9341/TA19Q11, H2D-9341/X19Q11
Manufacturer: Holset
Year: 1988-
Engine: L10, LTA10
Engine Manufacturer: Cummins
Fuel: Diesel
Power: 270 HP
Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3762564 (62564, 167543)(1253300300, 1800016038)
Bearing Housing: 3525199 (403040002)(Oil Cooled)(1900011204)
CHRA: 3545691 (4027579, 312284, 441398-0048)
Compressor Wheel: 3524996 (Ind. 61.46 mm, Exd. 91.67 mm, Trim 43, 6+6 Blades, Super Back)(402040002)
Gasket (Oil Inlet): 210023 (147837, 215234, 52231586500)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket Kit: 215149 (2090505116)
Heat Shield: 3529846 (3533038, 406500001)(2030016003)
Repair Kit: 3545653 (1152302750, 5000020017)
Turbine Wheel: 3522773 (Ind. 86 mm, Exd. 77 mm, Trim 12.97, 11 Blades)(1152302436, 1100016087)
Application:
1988-93 Truck with Cummins L10 Engine
1992- Various with Cummins LTA10 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3531772
Interchangeable Number: 3525743, 3525744, 353177300, 3531773H, 3803018, 3803018RX, 3803570NX, 3803570RX
OEM Number: 1295688H91, 3525743, 3531773, 3803570
Serial Number: 1861613
Turbo Model: H2D, H2D-9341/TA19Q11, H2D-9341/X19Q11
Manufacturer: Holset
Year: 1988-
Engine: L10, LTA10
Engine Manufacturer: Cummins
Fuel: Diesel
Power: 270 HP
Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3762564 (62564, 167543)(1253300300, 1800016038)
Bearing Housing: 3525199 (403040002)(Oil Cooled)(1900011204)
CHRA: 3545691 (4027579, 312284, 441398-0048)
Compressor Wheel: 3524996 (Ind. 61.46 mm, Exd. 91.67 mm, Trim 43, 6+6 Blades, Super Back)(402040002)
Gasket (Oil Inlet): 210023 (147837, 215234, 52231586500)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket Kit: 215149 (2090505116)
Heat Shield: 3529846 (3533038, 406500001)(2030016003)
Repair Kit: 3545653 (1152302750, 5000020017)
Turbine Wheel: 3522773 (Ind. 86 mm, Exd. 77 mm, Trim 12.97, 11 Blades)(1152302436, 1100016087)
Application:
1988-93 Truck with Cummins L10 Engine
1992- Various with Cummins LTA10 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
