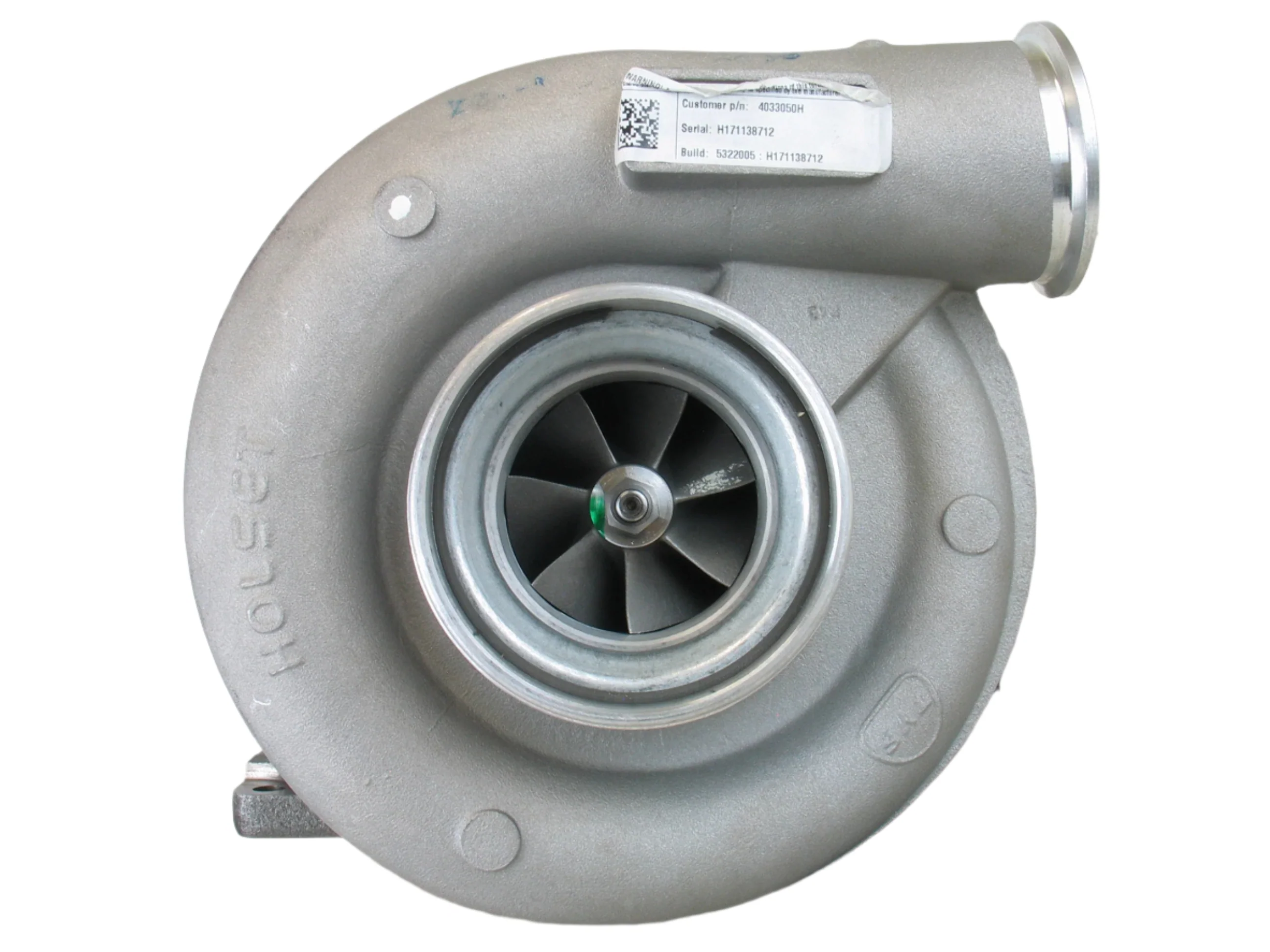

NEW Holset HX55 Turbo Iveco Agricultural Cursor 13 Diesel Engine 4033050 4040743
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4040743
Interchangeable Number: 4033050H
OEM Number: 4033050, 4040744, 4041207, 4044690, 5040950940, 5041316630, 504195315, 5041953150
Turbo Model: HX55, HX55-B98K68RAU/A86L90NY28W
Manufacturer: Holset
Year: 2005-
Engine: Cursor 13
Displacement: 13.0L
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 85°
Angle β (Turbine Housing): 270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 4039228 (Oil Cooled)
CHRA: (4031437) 4031437H
Compressor Housing: 4041167 (4041167H)
Compressor Wheel: 3593686 (359368600)(Ind. 67 mm, Exd. 99 mm, Trim 12.7, 7+7 Blades, Deep Super Back)(1200016360)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545577 (3545577H, 2090505445)
Heat Shield: 3529846 (3533038)(1153052340, 2030016003)
Repair Kit (Major): 3575181 (3575181H, 3580762)(1153055750)
Turbine Housing: 4039219
Turbine Wheel: 4039227 (3767975, 4042293)(Ind. 77 mm, Exd. 86 mm, Trim 13.06, 12 Blades)
Turbocharger Kit: 4033050H
Application:
2005- Iveco Agricultural with Cursor 13 Engine
2005- Iveco Gen Set with Cursor 13 Engine
2005- Iveco Industrial with Cursor 13 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4040743
Interchangeable Number: 4033050H
OEM Number: 4033050, 4040744, 4041207, 4044690, 5040950940, 5041316630, 504195315, 5041953150
Turbo Model: HX55, HX55-B98K68RAU/A86L90NY28W
Manufacturer: Holset
Year: 2005-
Engine: Cursor 13
Displacement: 13.0L
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 85°
Angle β (Turbine Housing): 270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 4039228 (Oil Cooled)
CHRA: (4031437) 4031437H
Compressor Housing: 4041167 (4041167H)
Compressor Wheel: 3593686 (359368600)(Ind. 67 mm, Exd. 99 mm, Trim 12.7, 7+7 Blades, Deep Super Back)(1200016360)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545577 (3545577H, 2090505445)
Heat Shield: 3529846 (3533038)(1153052340, 2030016003)
Repair Kit (Major): 3575181 (3575181H, 3580762)(1153055750)
Turbine Housing: 4039219
Turbine Wheel: 4039227 (3767975, 4042293)(Ind. 77 mm, Exd. 86 mm, Trim 13.06, 12 Blades)
Turbocharger Kit: 4033050H
Application:
2005- Iveco Agricultural with Cursor 13 Engine
2005- Iveco Gen Set with Cursor 13 Engine
2005- Iveco Industrial with Cursor 13 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4040743
Interchangeable Number: 4033050H
OEM Number: 4033050, 4040744, 4041207, 4044690, 5040950940, 5041316630, 504195315, 5041953150
Turbo Model: HX55, HX55-B98K68RAU/A86L90NY28W
Manufacturer: Holset
Year: 2005-
Engine: Cursor 13
Displacement: 13.0L
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 85°
Angle β (Turbine Housing): 270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 4039228 (Oil Cooled)
CHRA: (4031437) 4031437H
Compressor Housing: 4041167 (4041167H)
Compressor Wheel: 3593686 (359368600)(Ind. 67 mm, Exd. 99 mm, Trim 12.7, 7+7 Blades, Deep Super Back)(1200016360)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545577 (3545577H, 2090505445)
Heat Shield: 3529846 (3533038)(1153052340, 2030016003)
Repair Kit (Major): 3575181 (3575181H, 3580762)(1153055750)
Turbine Housing: 4039219
Turbine Wheel: 4039227 (3767975, 4042293)(Ind. 77 mm, Exd. 86 mm, Trim 13.06, 12 Blades)
Turbocharger Kit: 4033050H
Application:
2005- Iveco Agricultural with Cursor 13 Engine
2005- Iveco Gen Set with Cursor 13 Engine
2005- Iveco Industrial with Cursor 13 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4040743
Interchangeable Number: 4033050H
OEM Number: 4033050, 4040744, 4041207, 4044690, 5040950940, 5041316630, 504195315, 5041953150
Turbo Model: HX55, HX55-B98K68RAU/A86L90NY28W
Manufacturer: Holset
Year: 2005-
Engine: Cursor 13
Displacement: 13.0L
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 85°
Angle β (Turbine Housing): 270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 4039228 (Oil Cooled)
CHRA: (4031437) 4031437H
Compressor Housing: 4041167 (4041167H)
Compressor Wheel: 3593686 (359368600)(Ind. 67 mm, Exd. 99 mm, Trim 12.7, 7+7 Blades, Deep Super Back)(1200016360)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545577 (3545577H, 2090505445)
Heat Shield: 3529846 (3533038)(1153052340, 2030016003)
Repair Kit (Major): 3575181 (3575181H, 3580762)(1153055750)
Turbine Housing: 4039219
Turbine Wheel: 4039227 (3767975, 4042293)(Ind. 77 mm, Exd. 86 mm, Trim 13.06, 12 Blades)
Turbocharger Kit: 4033050H
Application:
2005- Iveco Agricultural with Cursor 13 Engine
2005- Iveco Gen Set with Cursor 13 Engine
2005- Iveco Industrial with Cursor 13 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
$1,595.00
NEW Holset HX55 Turbo Iveco Agricultural Cursor 13 Diesel Engine 4033050 4040743—
$1,595.00
Description
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4040743
Interchangeable Number: 4033050H
OEM Number: 4033050, 4040744, 4041207, 4044690, 5040950940, 5041316630, 504195315, 5041953150
Turbo Model: HX55, HX55-B98K68RAU/A86L90NY28W
Manufacturer: Holset
Year: 2005-
Engine: Cursor 13
Displacement: 13.0L
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 85°
Angle β (Turbine Housing): 270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 4039228 (Oil Cooled)
CHRA: (4031437) 4031437H
Compressor Housing: 4041167 (4041167H)
Compressor Wheel: 3593686 (359368600)(Ind. 67 mm, Exd. 99 mm, Trim 12.7, 7+7 Blades, Deep Super Back)(1200016360)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545577 (3545577H, 2090505445)
Heat Shield: 3529846 (3533038)(1153052340, 2030016003)
Repair Kit (Major): 3575181 (3575181H, 3580762)(1153055750)
Turbine Housing: 4039219
Turbine Wheel: 4039227 (3767975, 4042293)(Ind. 77 mm, Exd. 86 mm, Trim 13.06, 12 Blades)
Turbocharger Kit: 4033050H
Application:
2005- Iveco Agricultural with Cursor 13 Engine
2005- Iveco Gen Set with Cursor 13 Engine
2005- Iveco Industrial with Cursor 13 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4040743
Interchangeable Number: 4033050H
OEM Number: 4033050, 4040744, 4041207, 4044690, 5040950940, 5041316630, 504195315, 5041953150
Turbo Model: HX55, HX55-B98K68RAU/A86L90NY28W
Manufacturer: Holset
Year: 2005-
Engine: Cursor 13
Displacement: 13.0L
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 85°
Angle β (Turbine Housing): 270°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 4039228 (Oil Cooled)
CHRA: (4031437) 4031437H
Compressor Housing: 4041167 (4041167H)
Compressor Wheel: 3593686 (359368600)(Ind. 67 mm, Exd. 99 mm, Trim 12.7, 7+7 Blades, Deep Super Back)(1200016360)
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545577 (3545577H, 2090505445)
Heat Shield: 3529846 (3533038)(1153052340, 2030016003)
Repair Kit (Major): 3575181 (3575181H, 3580762)(1153055750)
Turbine Housing: 4039219
Turbine Wheel: 4039227 (3767975, 4042293)(Ind. 77 mm, Exd. 86 mm, Trim 13.06, 12 Blades)
Turbocharger Kit: 4033050H
Application:
2005- Iveco Agricultural with Cursor 13 Engine
2005- Iveco Gen Set with Cursor 13 Engine
2005- Iveco Industrial with Cursor 13 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
