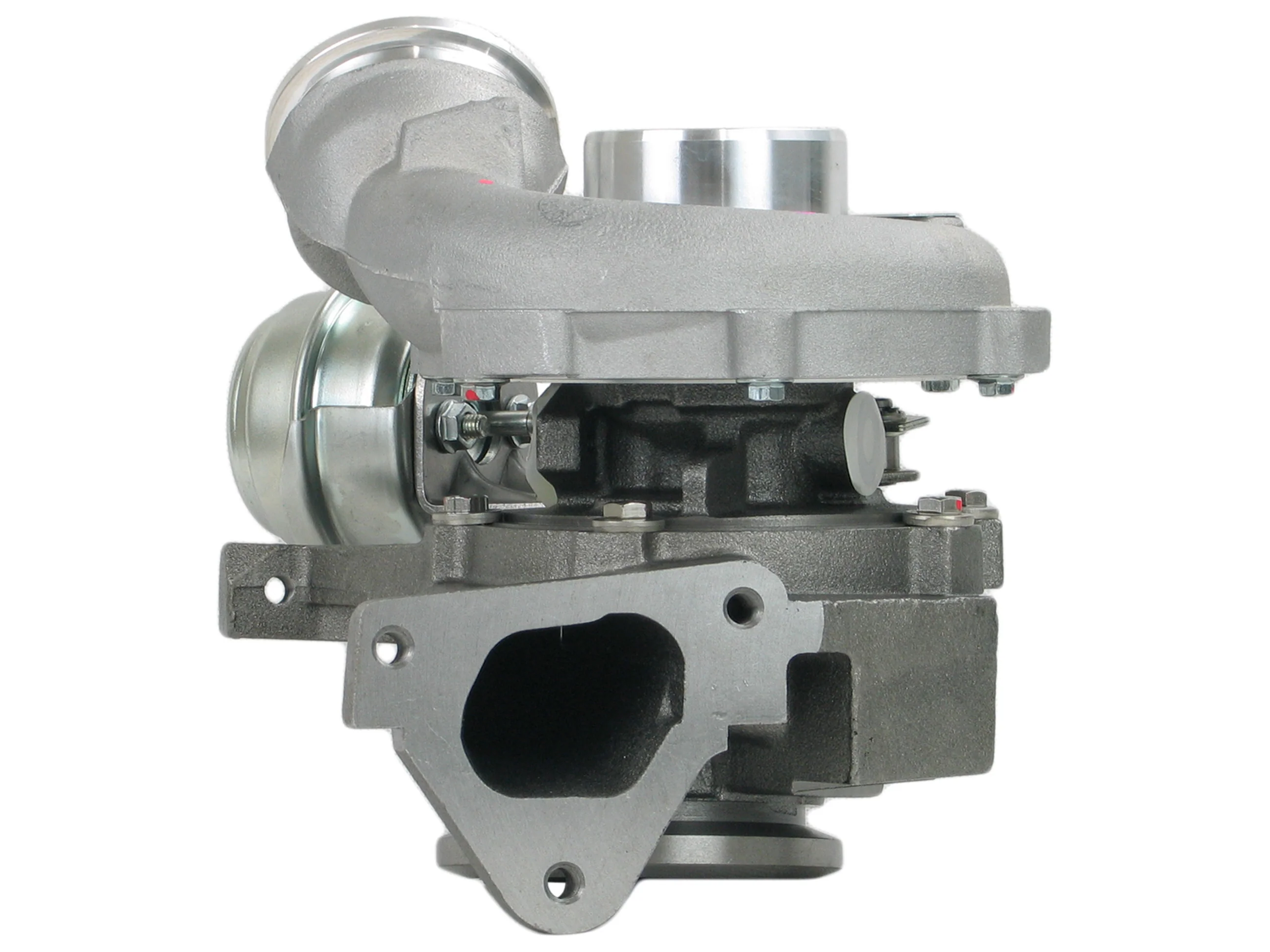

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 709838-5005S
Interchangeable Number: 709838-0005, 709838-5005, 709838-0001, 709838-5001, 709838-5001S, 709838-0003, 709838-5003, 709838-5003S, 709838-0004, 709838-5004, 709838-5004S
OEM Number: 6120960399, A6120960399
Turbo Model: GT2256V

Year: 2000-
Engine: OM612 D5S, OM612 DE27 LA, OM612 DE27, 612981
Engine Manufacturer: Mercedes-Benz
Displacement: 2.7L, 2688 ccm, 5 Cylinders
Power: 156/168 HP

Actuator: 434855-0009 (2061016341)
Back Plate: 701335-0005 (434822-0002)(104010030)(1102025300)
Bearing Housing: 722282-0020 (1102022450)
CHRA: 703891-0064 (703891-0032, 703891-5064S)(1102022901)
Compressor Cover: 704519-0001
Compressor Wheel: 701374-0003 (Ind. 39.6 mm, Exd. 56 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210243 (34336-04100, Paper)
Gasket (Turbine Inlet): 210378 (Inox Steel)
Heat Shield: 443768-0003 (702486-0011)(1102015340)
Nozzle Ring Assembly: 707050-0013/717506-0025
Repair Kit: 732252-0001 (1102015756)
Turbine Housing A/R: VNT2
Turbine Housing: 708960-0001
Turbine Wheel: 434882-0005 (434882-0010)(Ind. 50 mm, Exd. 42.7 mm, 9 Blades)(1102022435)
Wastegate Settings (Lift Shaft): 10.5-12.5 mm
Wastegate Settings (Pressure): 0.560-0.600 bar

Application:
2000-04 Mercedes-Benz Sprinter 216, 316, 416, 616 with OM612 D5S Engine
2000-06 Dodge Sprinter with OM612 DE27 LA, OM612 DE27 Engine
2000-06 Mercedes-Benz Sprinter 216D CDI B901, B902 with 2.7L 612981 Engine
2000-06 Mercedes-Benz Sprinter 316D CDI B903, 416D CDI B904 with 2.7L 612981 Engine
2000-06 Mercedes-Benz Sprinter I 216CDI, 316CDI, 416CDI with OM612 DE27 Engine
2001-06 Mercedes-Benz Sprinter 616D CDI B905 with 2.7L 612981 Engine
2002-06 Mercedes-Benz Sprinter 316D CDI B903 with 2.7L 612981 Engine
2004- Mercedes-Benz Sprinter 216 CDI, 316 CDI, 416 CDI, 616 CDI with 2.7L OM612 D5S Engine

TurboTurbos Part Number: TP01-0002-03

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
